Description

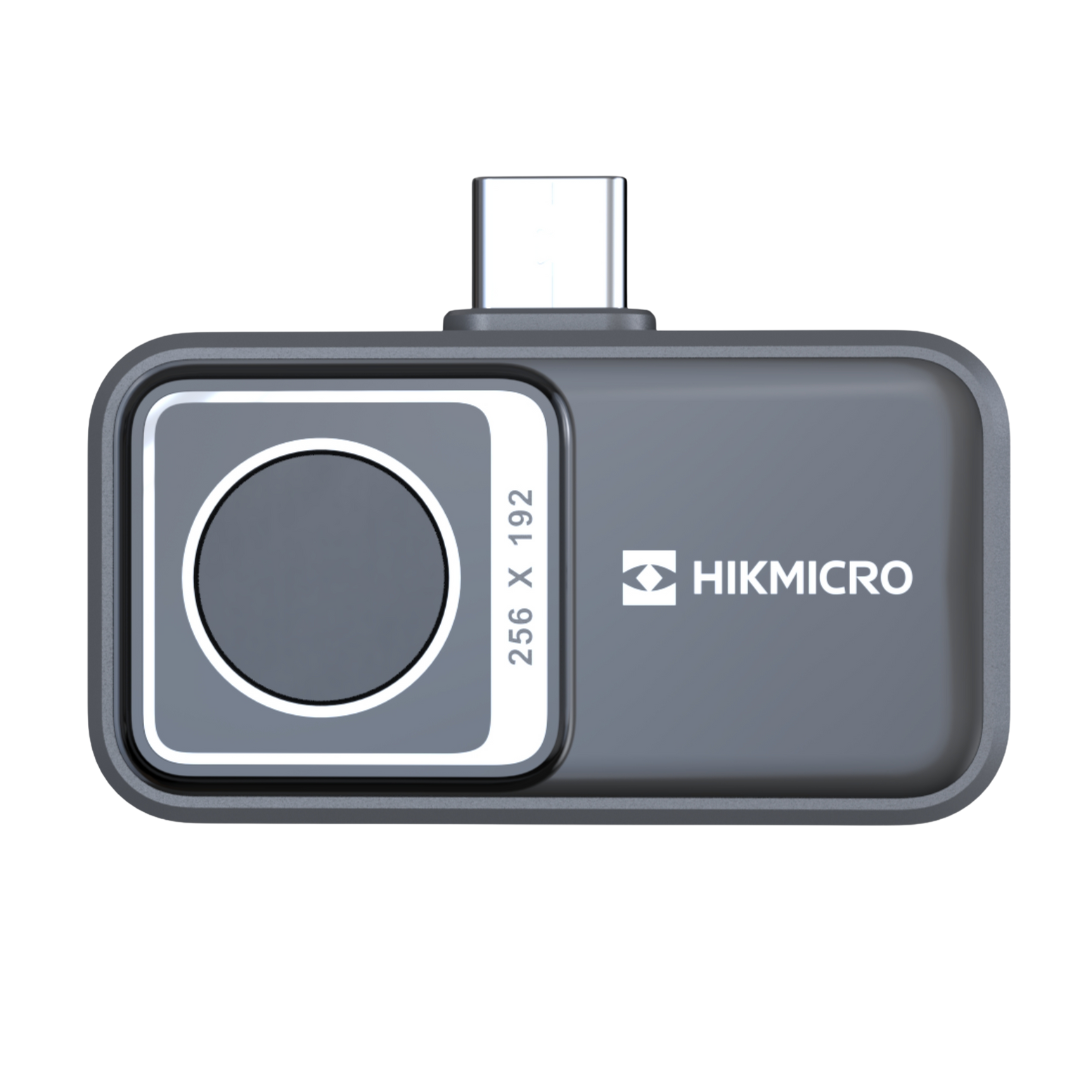

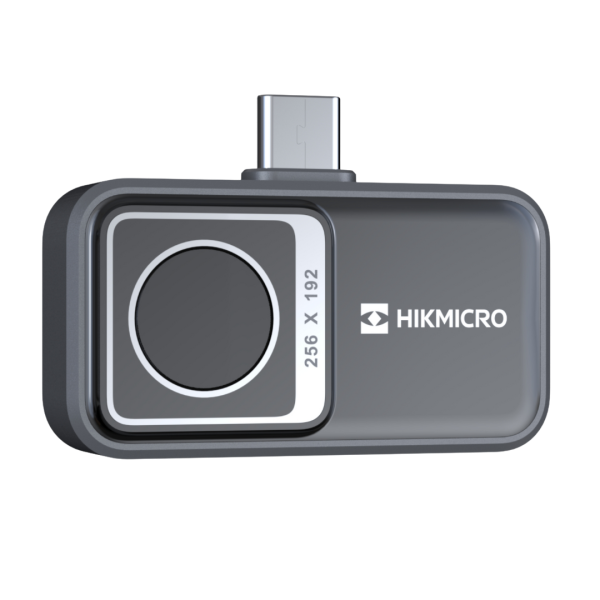

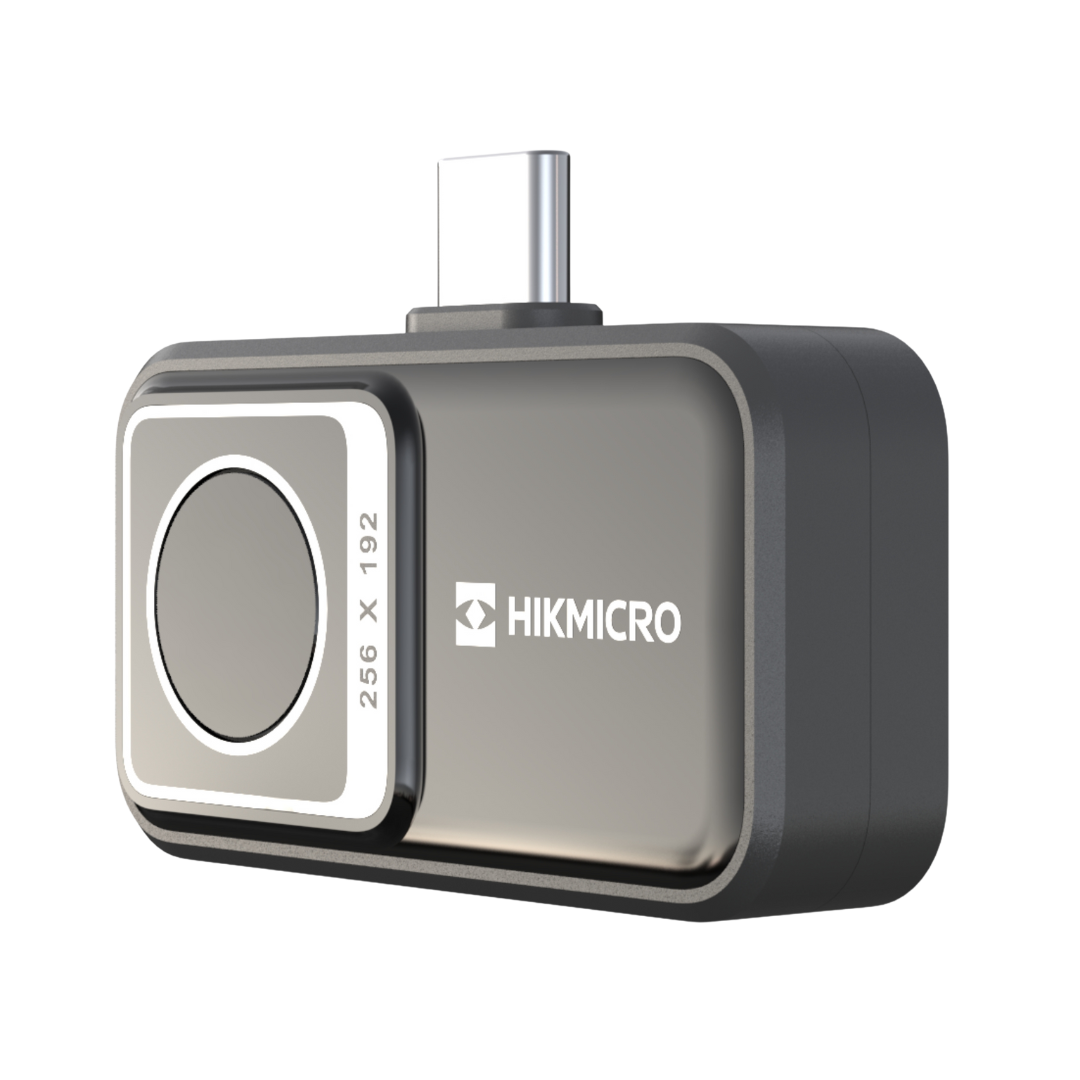

Hikmicro Mini2 V2 thermal vamera

The HIKMICRO Mini2 V2 is a compact and powerful thermal camera for Android and Apple smartphones. Its plug & play connection via USB-C or Lightning allows for quick measurements without additional setup. The camera’s 256 × 192 infrared detector provides a clear thermal image, and autofocus enables accurate temperature detection from as close as 20 cm.

The device supports 12 color palettes and five different views, making it easy to detect heat sources and cold spots. The measurable temperature range is -20 °C to +400 °C, making it ideal for home maintenance, electrical and plumbing work, equipment diagnostics, and repairs.
With an IP40 protection rating and a weight of just 20 g, the device is highly portable. The package includes a protective case, Apple adapter, and extension cable.

Key Features

• Thermal resolution: 256 × 192.
• Autofocus/span>
• Field of view: 50° × 37.2°.
• Measurable temperature range: -20 °C to 400 °C.
• Measurement accuracy: ±2 °C or ±2%.
• IP40
• Operating temperature: -10 °C to 50 °C.
• Dimensions: 42 × 22.5 × 11.2 mm.
• Weight: 20g.

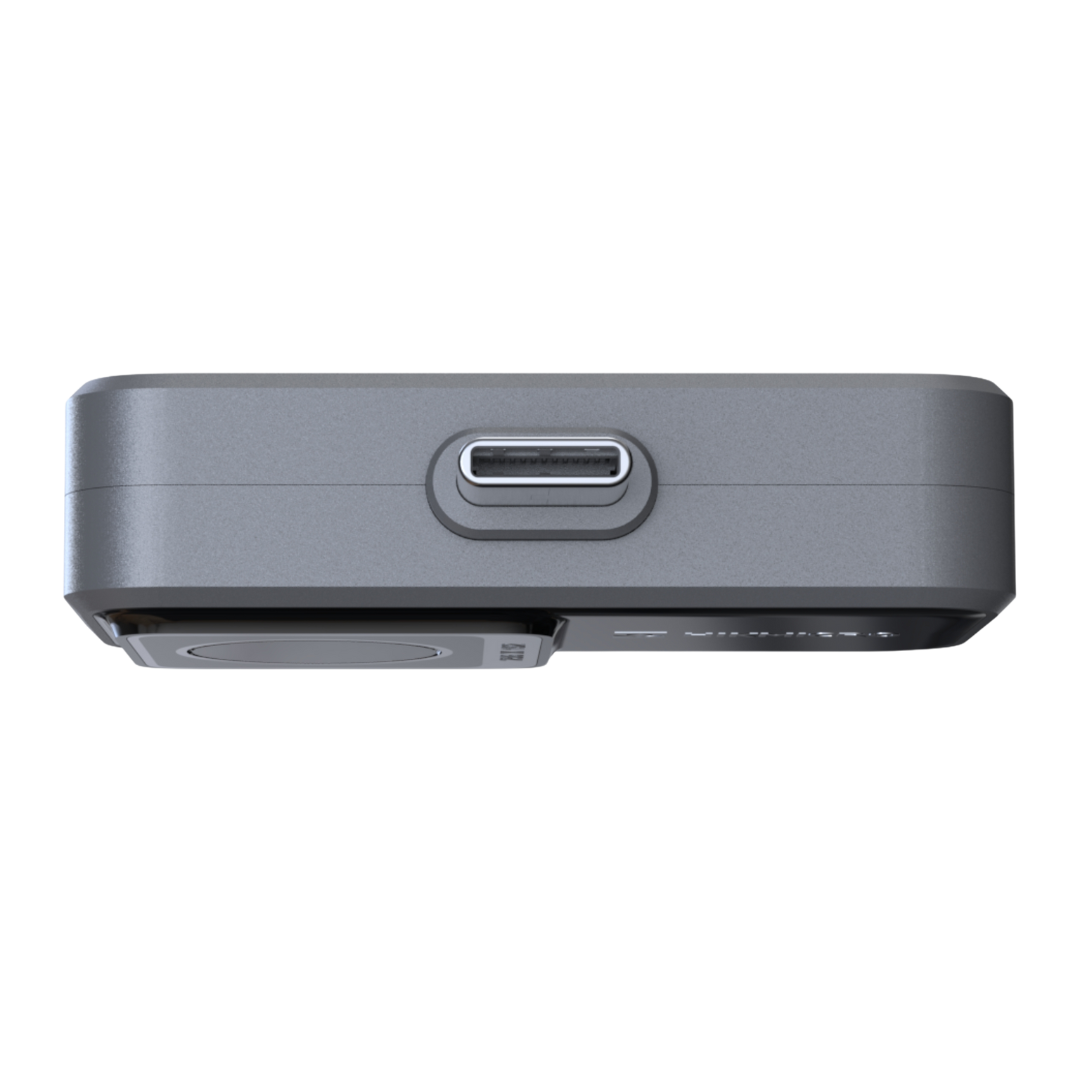

• USB Type-C interface (for Android).
• Includes a protective case for the device, Apple Lightning adapter, and extension cable.
