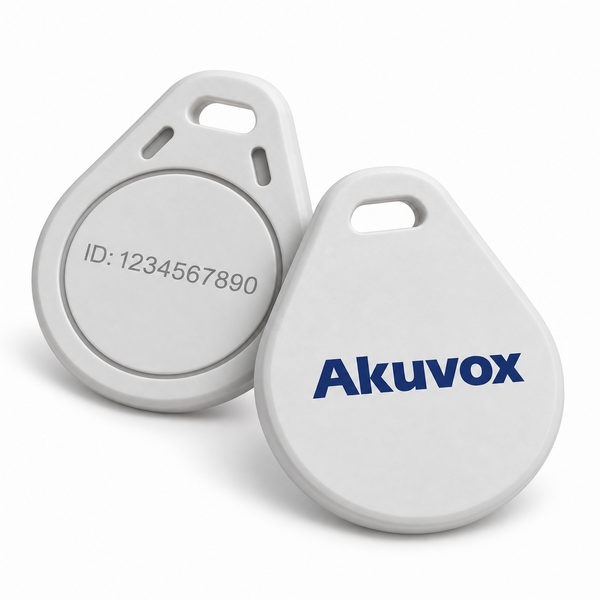

Akuvox Fudan F08 13.56 MHz RFID Access Key Fob, white

Description

Akuvox Fudan F08 13.56 MHz RFID Access Key Fob, white

Akuvox Fudan F08 is a compact 13.56 MHz RFID access key fob intended for use in access control and intercom systems for user identification and door access.
The key fob uses the ISO 14443 Type A communication protocol and features 1K EEPROM memory. Its passive RFID technology requires no battery or charging – the key fob receives the energy required for operation from the electromagnetic field generated by the RFID reader.

The F08 is designed in a convenient key-fob format and can be attached to a key ring. According to the manufacturer, the housing is strong, flexible, and resistant to cracking and breaking. It provides a consistent reading range in different operating conditions, including when used close to keys and coins

Tehnilcal Specifications

• Operating frequency: 13.56 MHz
• Communication protocol: ISO 14443 Type A
• Memory: 1K EEPROM
• Dimensions: 40.9 × 32.5 mm (±0.5 mm)
• Thickness: 4.3 mm (±0.02 mm)
• Material: PVC
• Data retention: over 10 years
• Write endurance: minimum 100,000 cycles
• Number of applications: unlimited within memory constraints
• Environmental compliance: RoHS, China RoHS, REACH, Halogen Free

Features

• Contactless 13.56 MHz RFID identification
• Passive operation – no battery required
• Compact key-fob design
• Consistent reading performance in different operating conditions
• Durable PVC housing
• 1K EEPROM memory
• Suitable for use with readers supporting the ISO 14443 Type A standard

Usage

The RFID key fob is registered to a user in the access control system. To open a door, the key fob is presented near the RFID reader, allowing the system to identify the registered credential and grant access.

Please note: The F08 operates at 13.56 MHz and is not compatible with 125 kHz RFID readers.

Datasheet: Akuvox-Fudan-F08-Keyfob-Datasheet
