Description

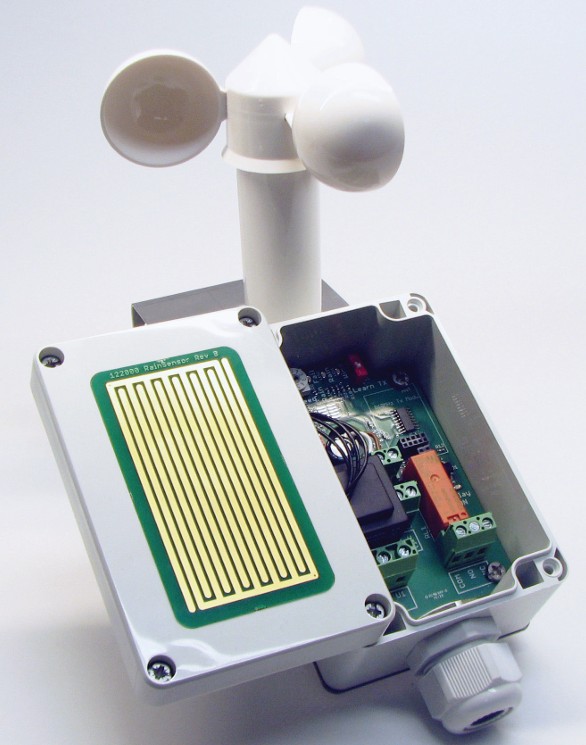

Actulux wind and rain sensor 24/230V
The Wind and Rain Sensor is developed for automatic control of smoke and comfort ventilation system and consists of a wind wheel and a rain sensor surface.
Both sensors are equipped with a potential free relay with a contact rating of 250VAC / 8A or 24VDC / 8A.
In case of wind and / or rain the relay is activated. The settings for the wind trigger point is adjusted using rotary switch on the main PCB.
Features
Supply voltage:: 18–35 V AC / 20–35 V DC / 200–250 V AC
Contact output:: NO–NC, 1 × potential-free changeover switch with monitoring
Contact load: 250 V AC / 2 A või 24 V DC / 2 A
Dimensions: 80 × 160 × 55 mm (L × K × S / without wind wheel)
Weight: 0,7 kg
IP65
Setting the window solution: Approx. 1 to 15 m/s (+ 20%)
Rain sensitivity: Adjustable 5%
The sensor must be cleaned regularly according to the level of contamination using a damp cloth (water only; do not use abrasive agents).
